Demos design by Targetti Health/ Luca Tomei

Demos is registered in the Directory of Medical Devices of the Ministry of Health with assigned sequence number 1216247. Demos is a Medical Device marked CE according to Directive 93/42CEE and is manufactured and tested in Italy.

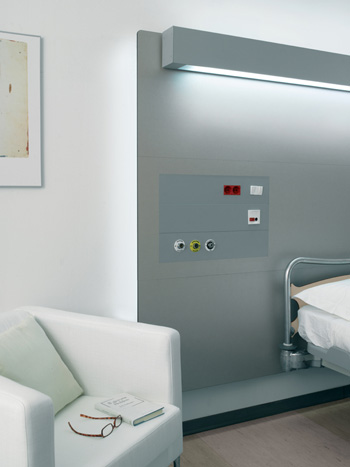

DEMOS is a wall unit coming from a great project idea: to free the hospital rooms from any technical constraints.

DEMOS is composed of one, tow or three three horizontal panels in high pressure laminate installed on a steel supporting structure: the technology that a modern hospital room requires is hidden in the compartment which is created between the front panels and the back wall, so they can be distributed to the element designed for the electrical, communication and medical gas appliances.

DEMOS is a system characterised by a surface finish of excellent hygiene, shock, wear, water and scratch-resistant and resistant to micro-organisms, also certified for its use in environments with special needs. Made to the customer's specifications in size and with the various appliances with which it can be fitted, it can be integrated with a lighting unit capable of providing the different types of lighting generally required for a comfortable hospital stay (like NAP, for example).

LIGHT SOURCES
LED lighting is made with high-efficiency modules. LED Modules are sized by our technical office to provide the best light emissions based on the characteristics of the environment.

modules are installed in the unit, which guarantee a very long life of the product with high luminous efficiency and low consumption (more light generated with less power). The light is clear and brilliant, the perception of the human eye is of natural illumination. The color temperature is calibrated to provide the best compromise between patient well-being and the operational need of the ward. Light emission, on request, can be dimmable by button, DALI protocol, 1-10V switch, or smartphone/tablet APP.

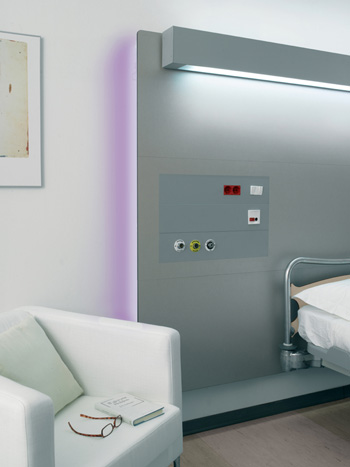

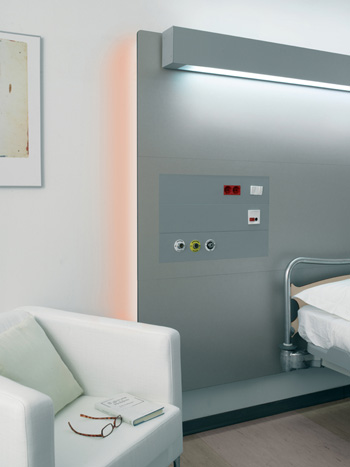

General indirect lighting is usually supplied by LED Modules, A cover sheet of lined polycarbonate protects the modules from dust. Visit and reading ight is usually supplied by LED Modules. With Demos there is also the possibility to mount LED Modules for lateral light emission and a blue LED strip, to help with orientation during the night hours.

FRONT PANELS

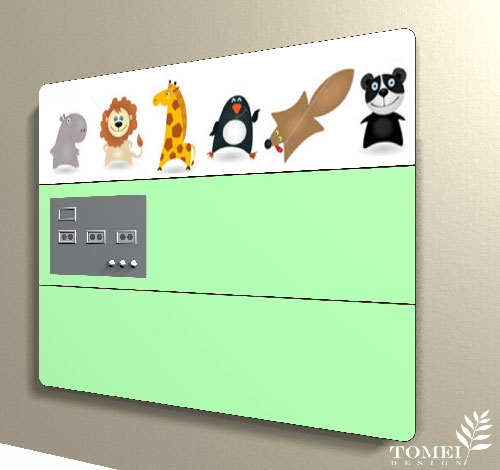

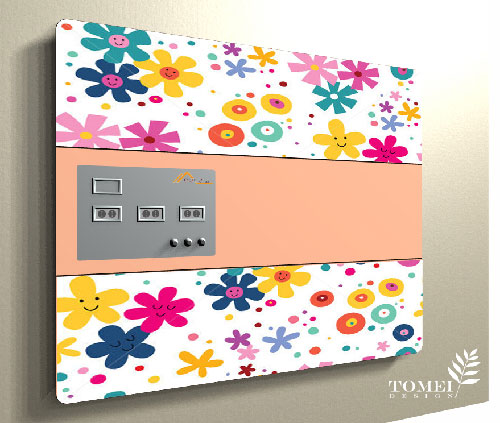

The front structure of DEMOS is made of one, two or three panels in high pressure laminate. The manufacturing technologies and the characteristics of the material allow processing the panels without any kind of limitation; cuts, holes and shapes can be made in any size and shape.

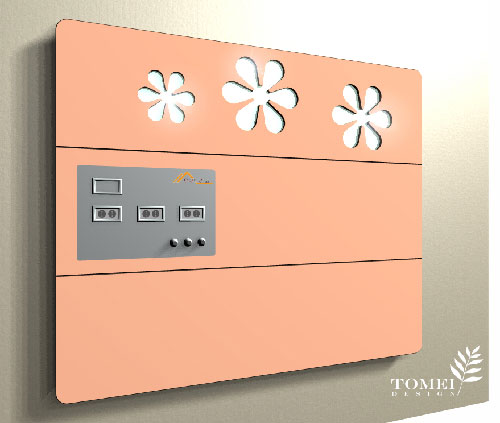

The top panel can, for example, be processed in order to be transformed into a "frame" or "window" with a frosted glass, backlit with RGB systems or dimmers. Typical of DEMOS panels is the particular processing of the edges and cuts, made with high precision, in order to obtain edges without sharp corners, for greater safety when using DEMOS and for greater robustness of the panels themselves.

The main body consists of two extruded aluminium profiles, closed at the front by a snap on lid, painted with polymerised epoxy powder Ral9006. The profiles contain and distribute separately, low voltage, very low voltage and medical gases.

The supporting structure is made of steel sheet. Uprights and crossbars are pre-assembled, and then applied to the walls. The front panels engage individually and independently to the structure; this provides access to the technical space and the wiring simply by removing a single panel.

EQUIPMENT
DEMOS are an electric unit ready for connection to a central point, with sockets and switches already wired to the central terminal connection. The electrical equipment can be chosen from among all the series available on the market, without any constraint except to verify its compatibility, in terms of structural size, with the structure and the size of DEMOS.

PLANNING
For proper identification of the primary characteristics of DEMOS it is recommended to:
- Specify the electrical facilities deemed necessary;
- Specify the set ups relating to medical gases;
- Specify the finish of the front panels;
- Specify, if necessary, the lighting unit to be integrated with DEMOS.

These data will be reviewed and processed by our Technical Department which will provide mechanical and electrical drawings related to the project, if necessary, adapting them to the building requirements and relevant regulations.

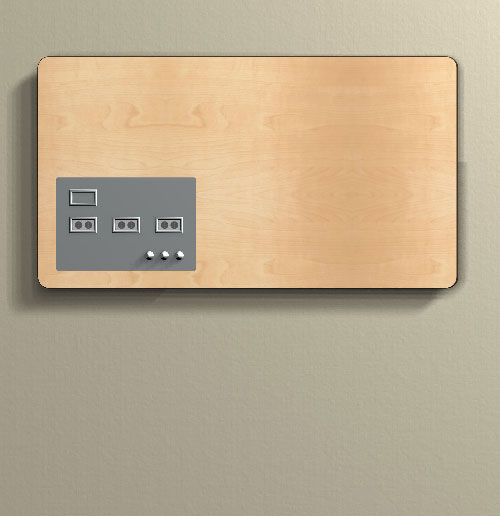

DEMOS LIGHT
In smaller spaces, in order to give up the charm of Demos, you can choose the LIGHT version, which offers all the elegance of Demos in a more "light".
